Camlock Fittings

Camlock "A"

FNPT x Male Camlock

Camlock "B"

MNPT x Female Camlock

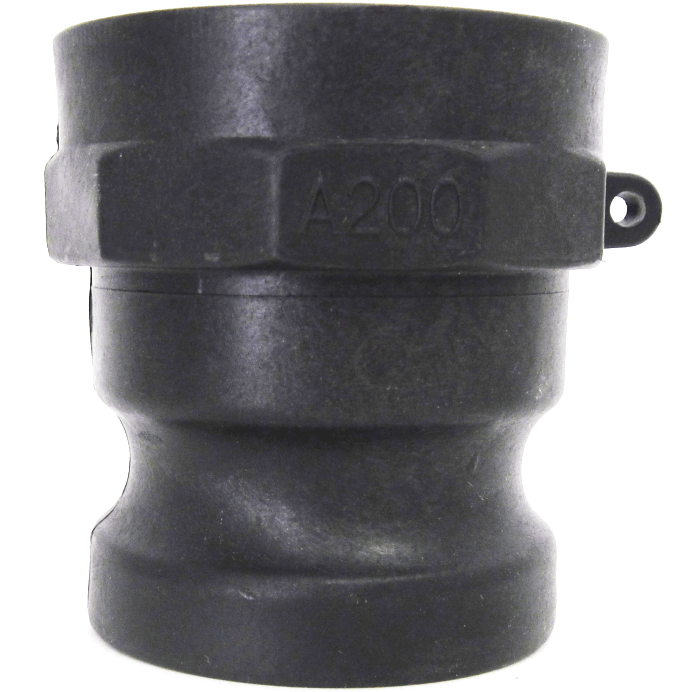

 Camlock A Aluminum FNPT x Male  Camlock A Poly FNPT x Male

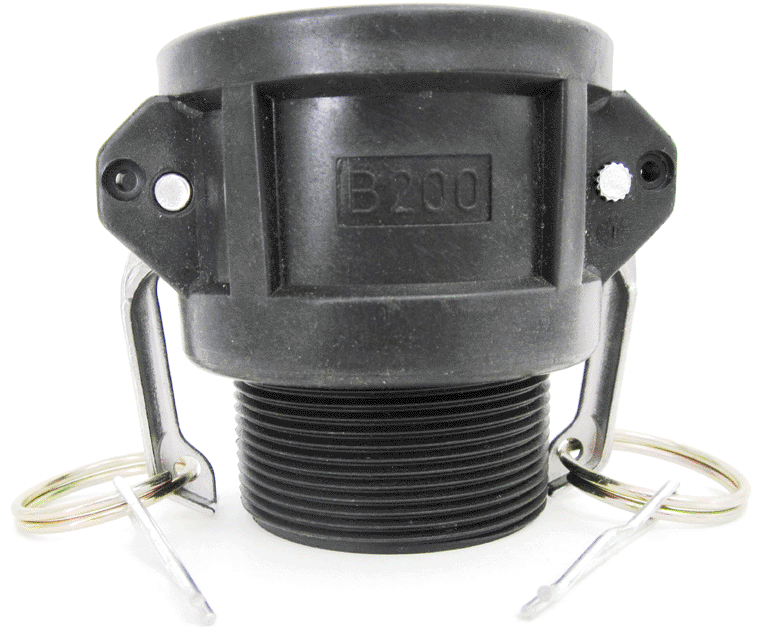

 Camlock B Aluminum MNPT x Female  Camlock B Poly MNPTx Female

Size  Aluminum Part #  Polypropylene Part #
3/4"  01A-075  02A-075
1"  01A-100  02A-100
1 1/4"  01A-125  02A-125
1 1/2" 01A-150 02A-150
2" 01A-200 02A-200
3" 01A-300 02A-300
4" 01A-400 02A-400
Size  Aluminum Part #  Polypropylene Part #
3/4"  01B-075  02B-075
1"  01B-100  02B-100
1 1/4"  01B-125  02B-125
1 1/2" 01B-150 02B-150
2" 01B-200 02B-200
3" 01B-300 02B-300
4" 01B-400 02B-400






Camlock "C"

Hose Shank x Female Camlock


Camlock "E"

Hose Shank x Male Camlock


Camlock C Alum Hose Shank x Female  Camlock C Poly Hose Shank x Female

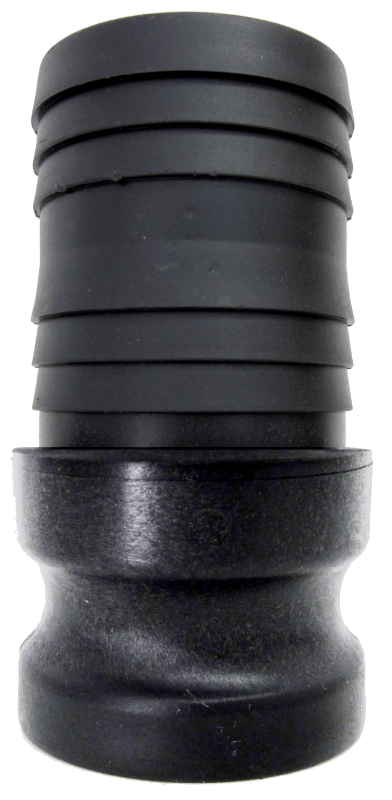

Camlock E Alum Hose Shank x Male  Camlock E Poly Hose Shank x Male

Size  Aluminum Part #  Polypropylene Part #
3/4"  01C-075  02C-075
1"  01C-100  02C-100
1 1/4"  01C-125  02C-125
1 1/2" 01C-150 02C-150
2" 01C-200 02C-200
3" 01C-300 02C-300
4" 01C-400 02C-400

Size  Aluminum Part #  Polypropylene Part #
3/4"  01E-075  02E-075
1"  01E-100  02E-100
1 1/4"  01E-125  02E-125
1 1/2" 01E-150 02E-150
2" 01E-200 02E-200
3" 01E-300 02E-300
4" 01E-400 02E-400



Camlock "D"

FNPT x Female Camlock



Camlock "F"

MNPT x Male Camlock

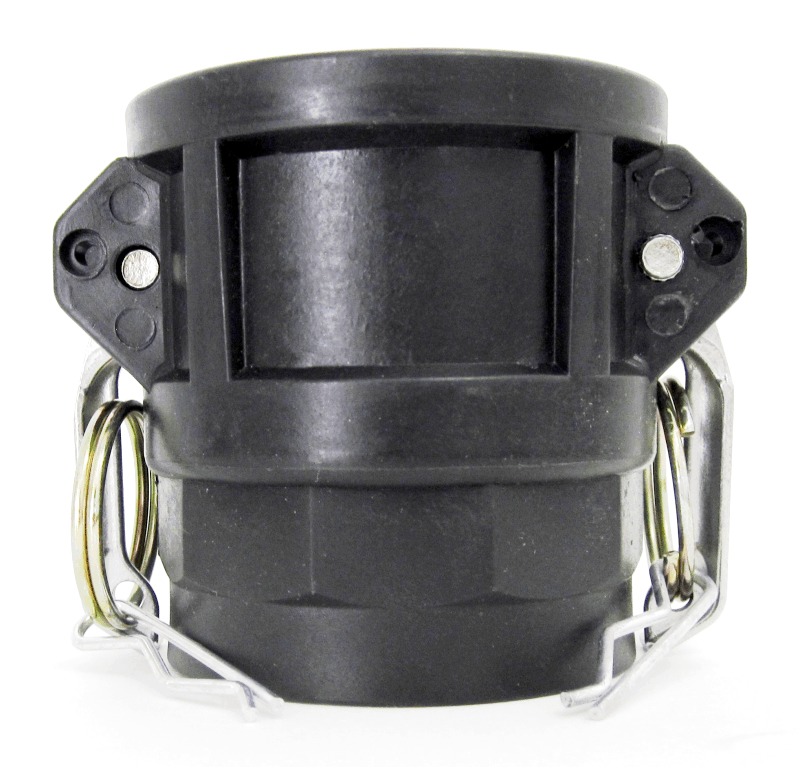

Camlock D Aluminum FNPT x Female  Camlock D Poly FNPT x Female
Camlock F Alum MNPT x Male  Camlock F Poly MNPT x Male
Size  Aluminum Part #  Polypropylene Part #
3/4"  01D-075  02D-075
1"  01D-100  02D-100
1 1/4"  01D-125  02D-125
1 1/2" 01D-150 02D-150
2" 01D-200 02D-200
3" 01D-300 02D-300
4" 01D-400 02D-400

Size  Aluminum Part #  Polypropylene Part #
3/4"  01F-075  02F-075
1"  01F-100  02F-100
1 1/4"  01F-125  02F-125
1 1/2" 01F-150 02F-150
2" 01F-200 02F-200
3" 01F-300 02F-300
4" 01F-400 02F-400




Camlock "DC"

Dust Cap Camlock



Camlock "DP"

Dust Plug Camlock

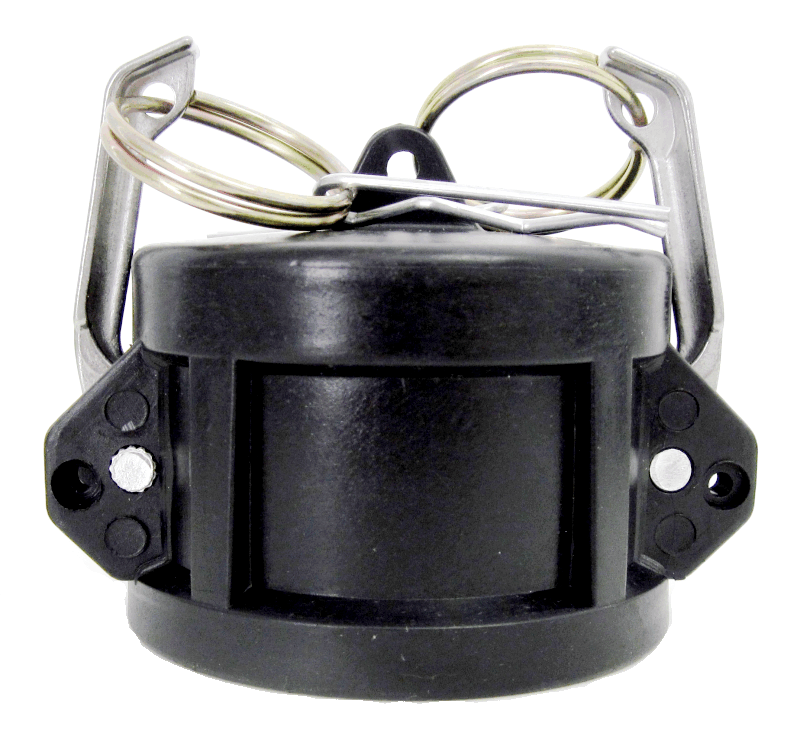

 Camlock DC Alum Dust Cap  Camlock DC Poly Dust Cap

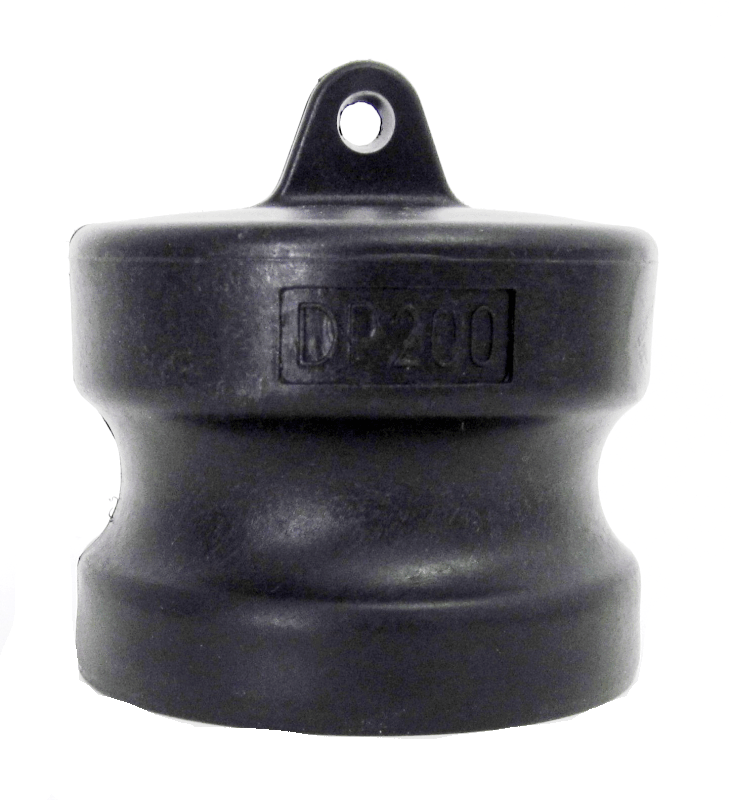

 Camlock DP Alum Dust Plug  Camlock DP Poly Dust Plug



Size  Aluminum Part #  Polypropylene Part #
3/4"  01DC-075  02DC-075
1"  01DC-100  02DC-100
1 1/4"  01DC-125  02DC-125
1 1/2" 01DC-150 02DC-150
2" 01DC-200 02DC-200
3" 01DC-300 02DC-300
4" 01DC-400 02DC-400




Size  Aluminum Part #  Polypropylene Part #
3/4"  01DP-075  02DP-075
1"  01DP-100  02DP-100
1 1/4"  01DP-125  02DP-125
1 1/2" 01DP-150 02DP-150
2" 01DP-200 02DP-200
3" 01DP-300 02DP-300
4" 01DP-400 02DP-400
